Take the guesswork out of tube notch layout with the Performance Chassis Works Tube Notching Template Set. Built for professional fabricators and home builders, this reusable template set makes it quick and easy to mark consistent notch profiles—without printing paper templates or working through complicated calculations.
With common round-tube sizes and multiple joint angles, the PCW bundle helps streamline fabrication, reduce repeated measuring, and save time preparing tubing for fit-up.
Key Features
Multiple reusable templates: Six tubing sizes for each of six joint angles.
Six joint angles: 15°, 22.5°, 30°, 45°, 60°, and 0°.
Six tubing outer diameters: 1.0",1.25", 1.5", 1.625" 1.75", 2".
Fast and consistent layout: Trace notch profiles directly onto your tubing.
Clearly marked templates: Easily select the size and angle needed for your project.
Repeated-use convenience: A practical addition to any fabrication shop or home garage.
Applications
Exhaust fabrication including headers and Y-pipes
Custom welding and fabrication projects
Chassis and suspension fabrication
Structural railings and general tubing work
What’s Included

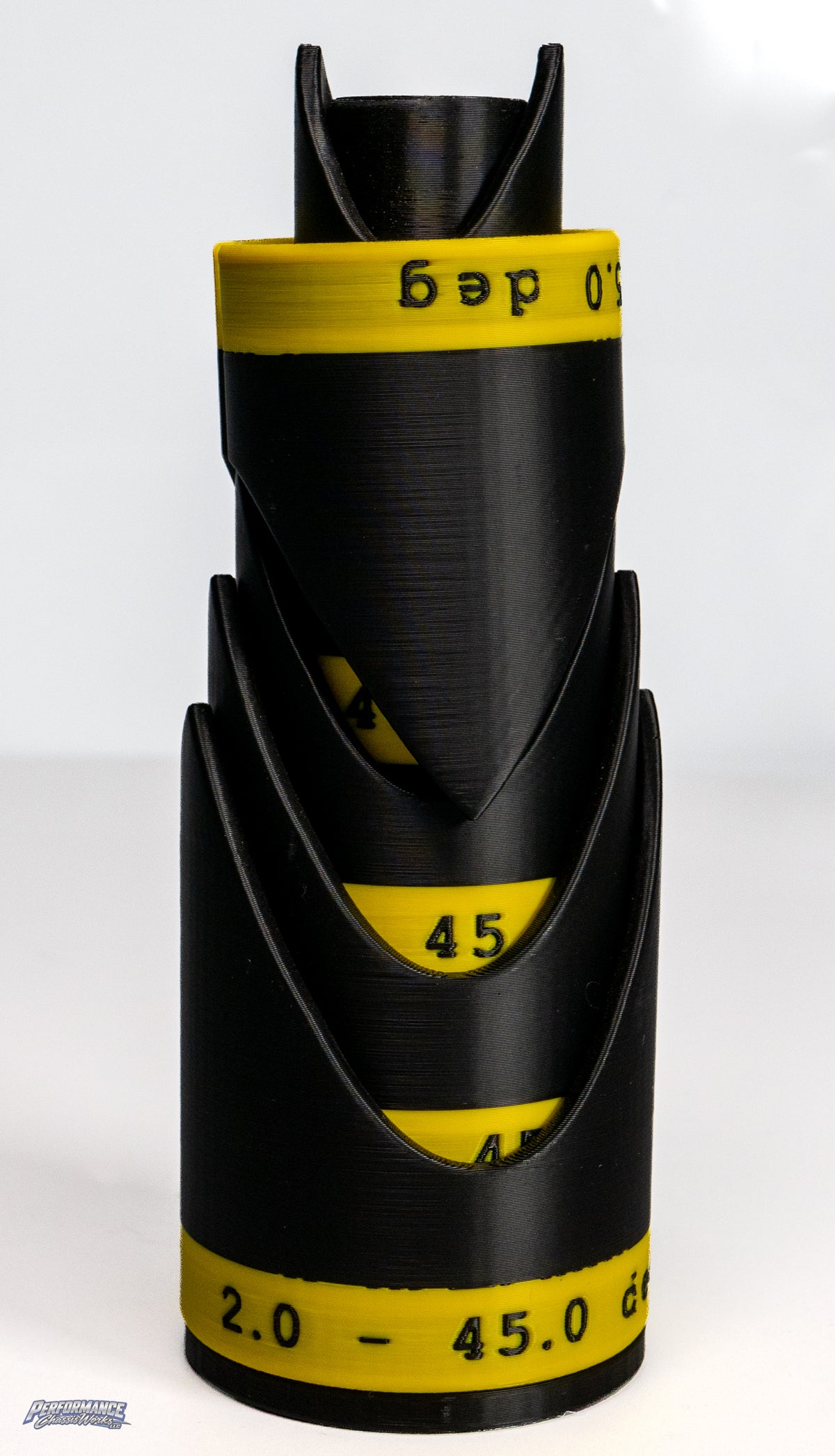

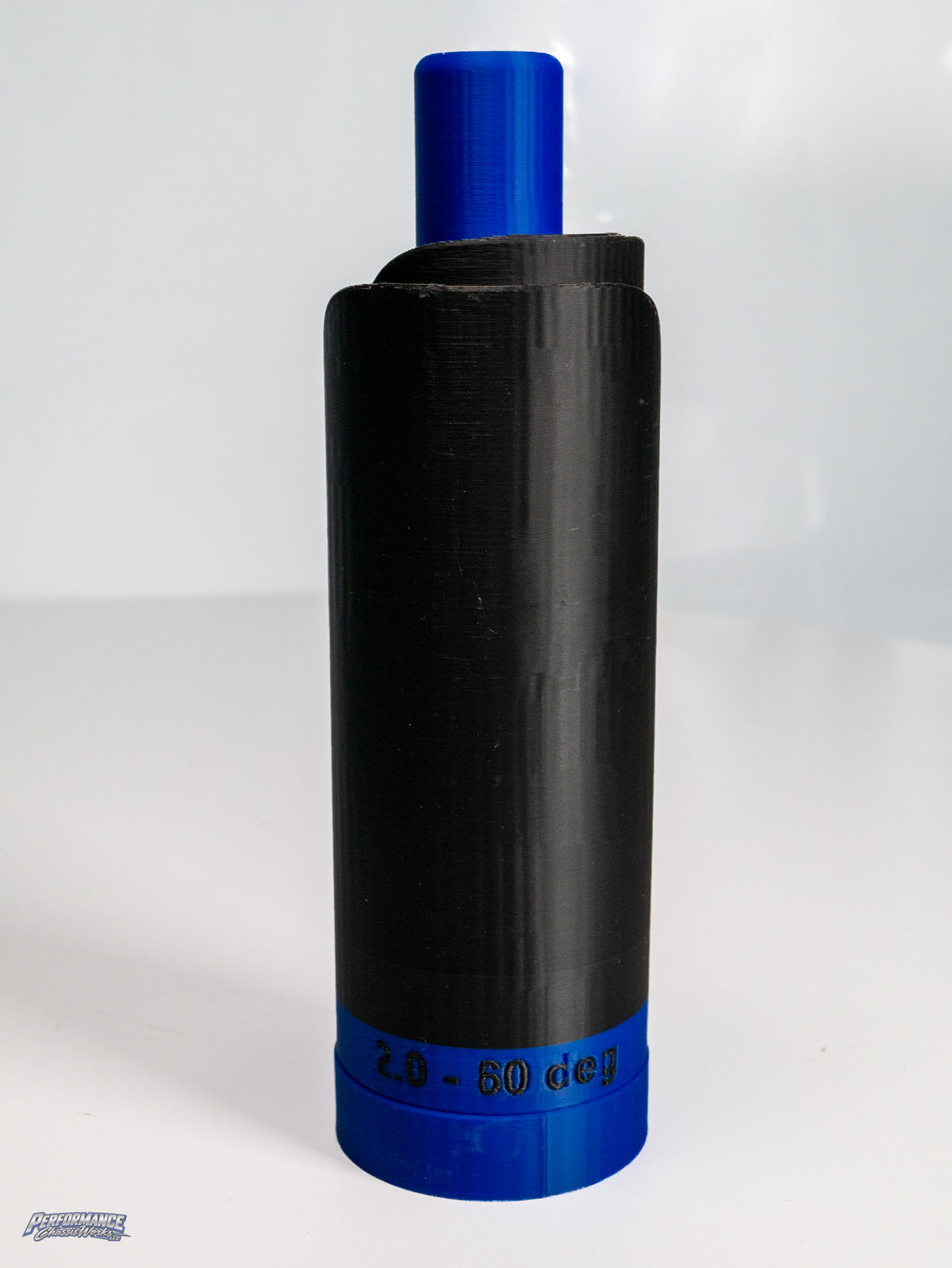

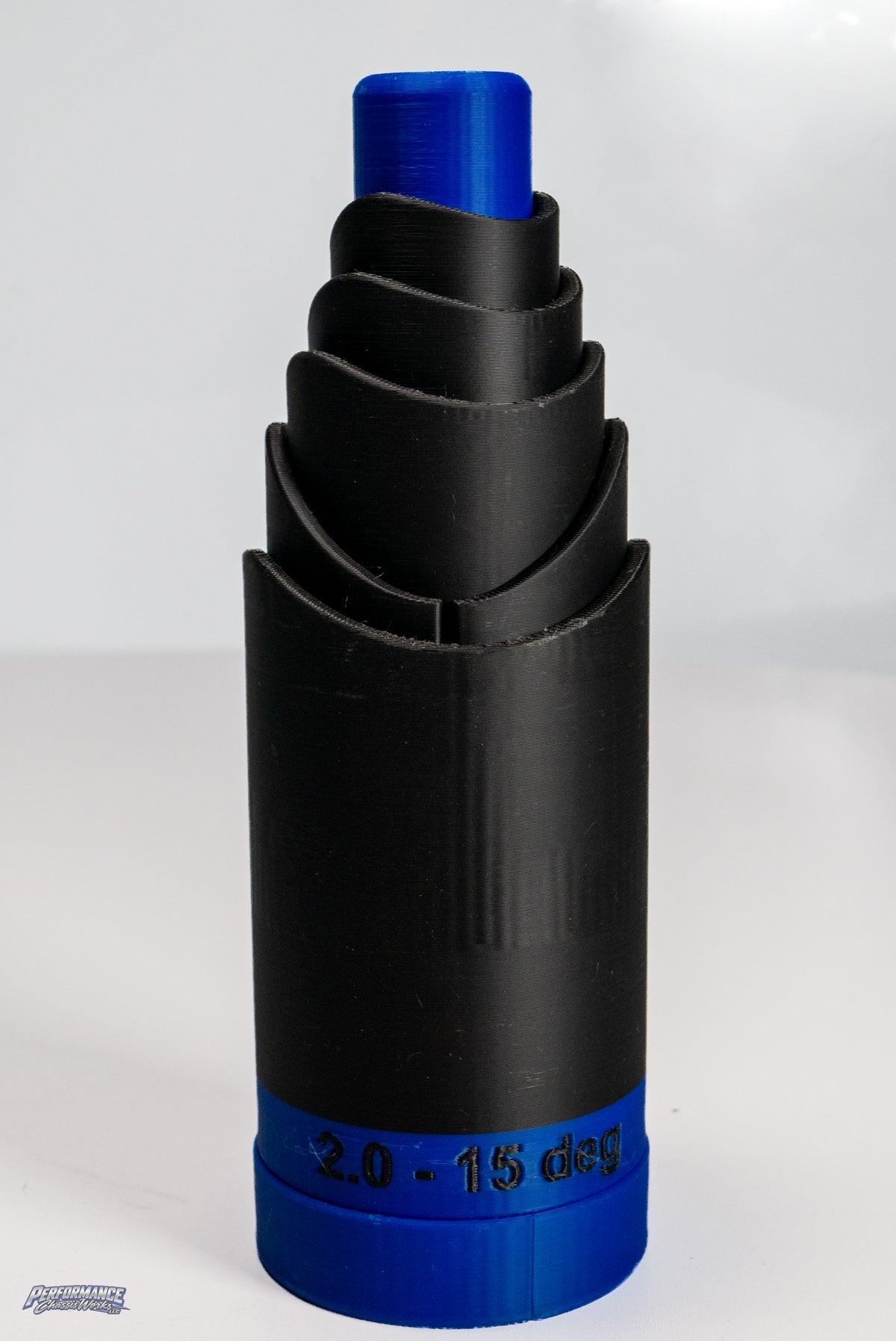

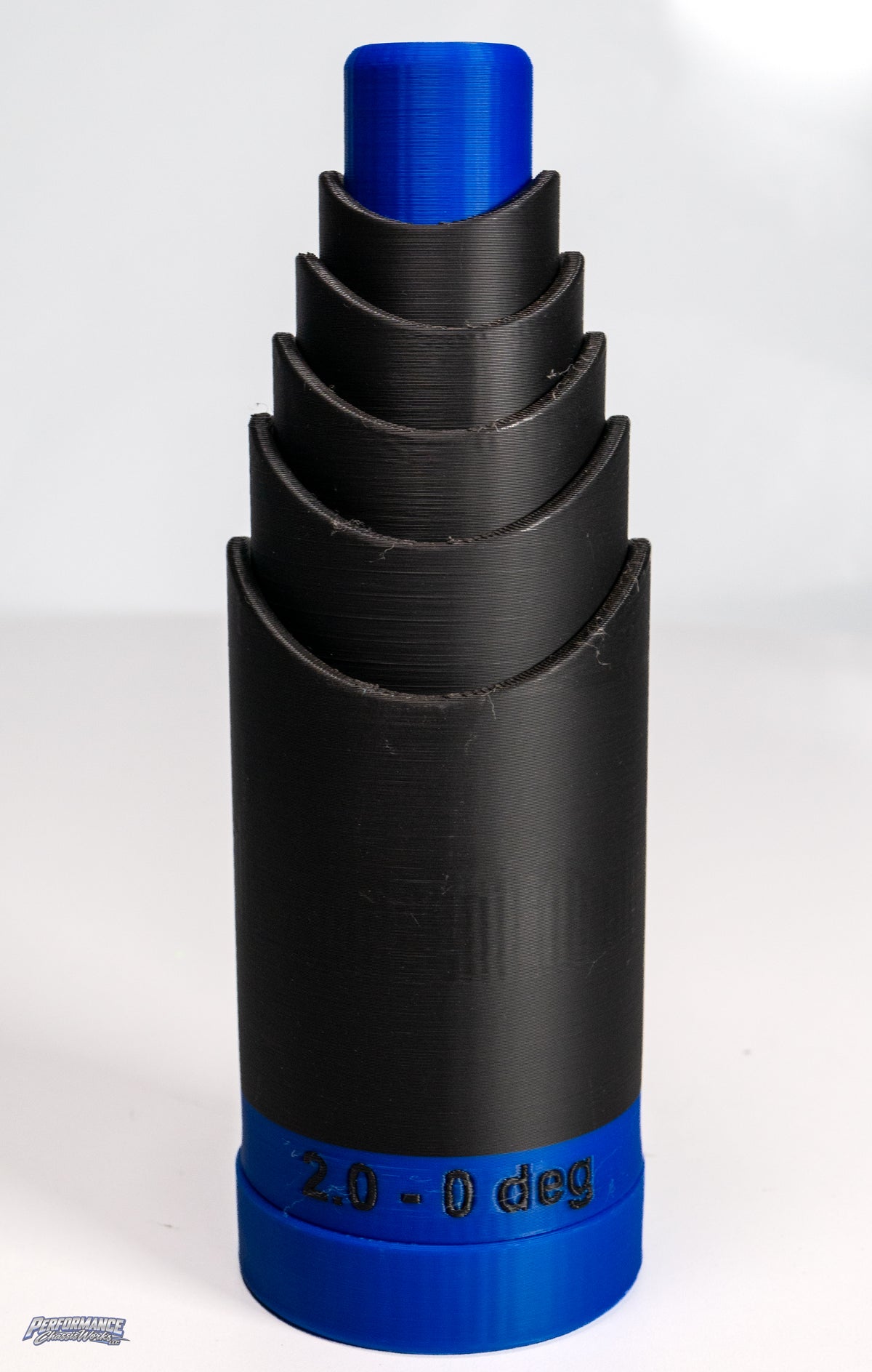

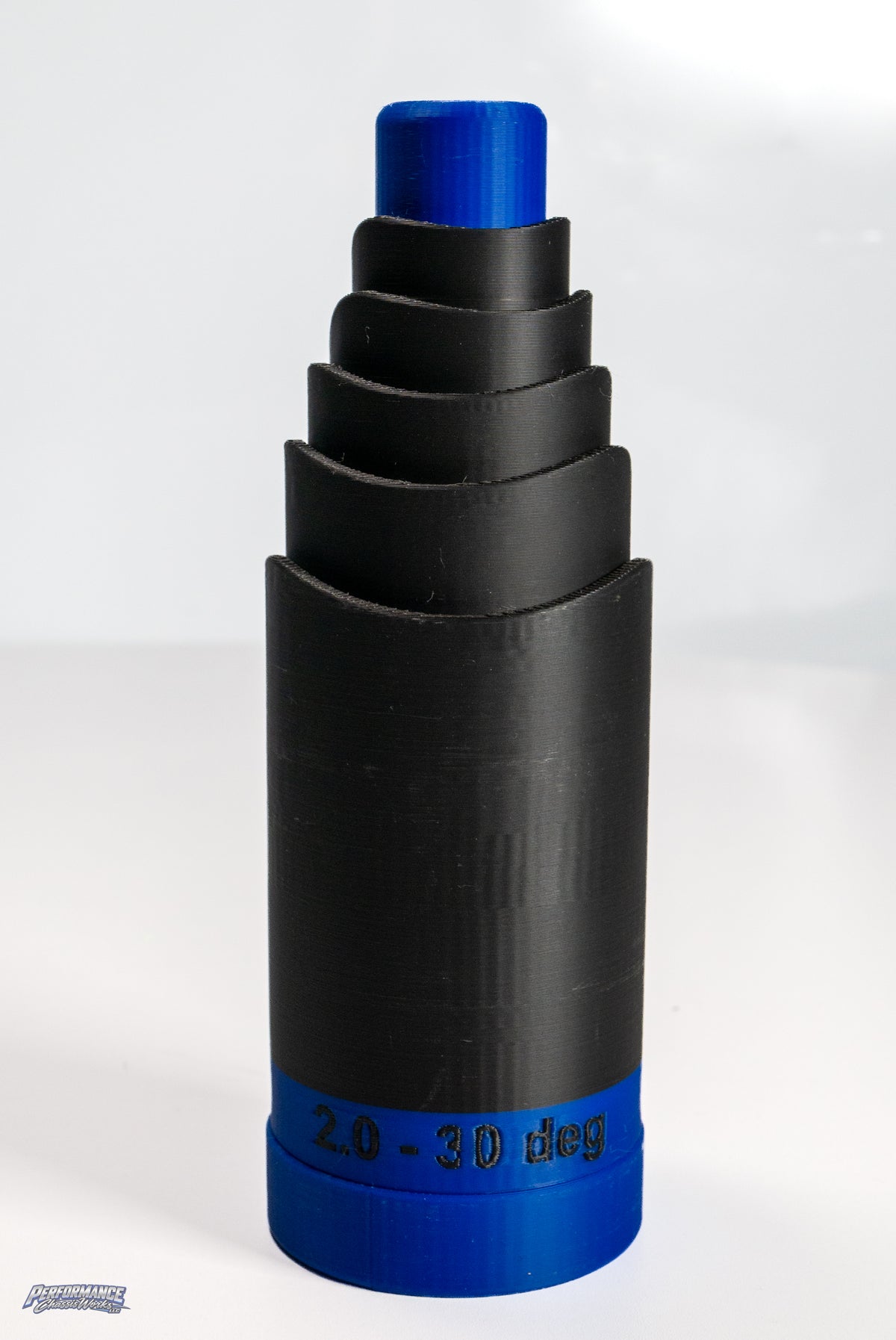

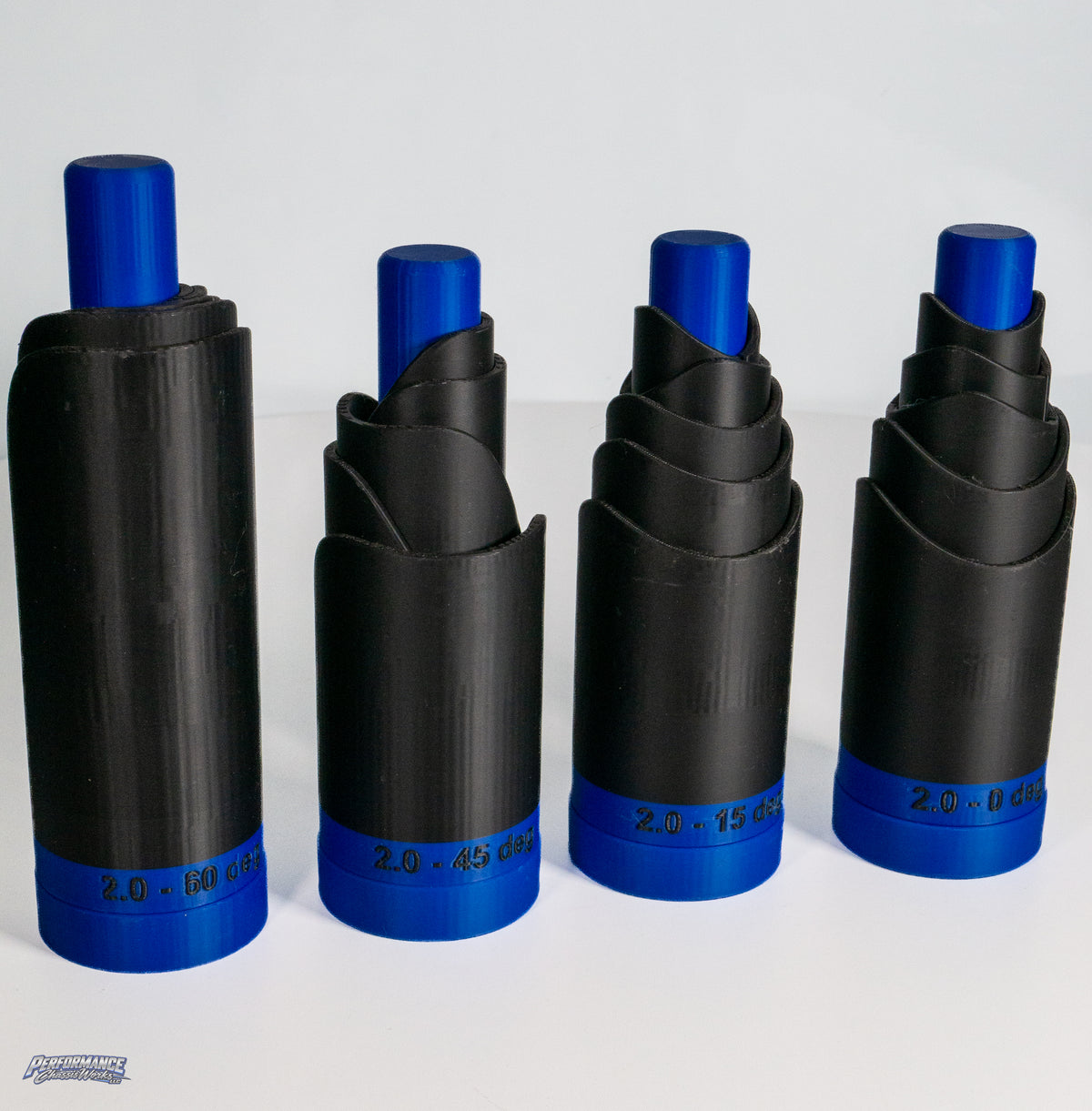

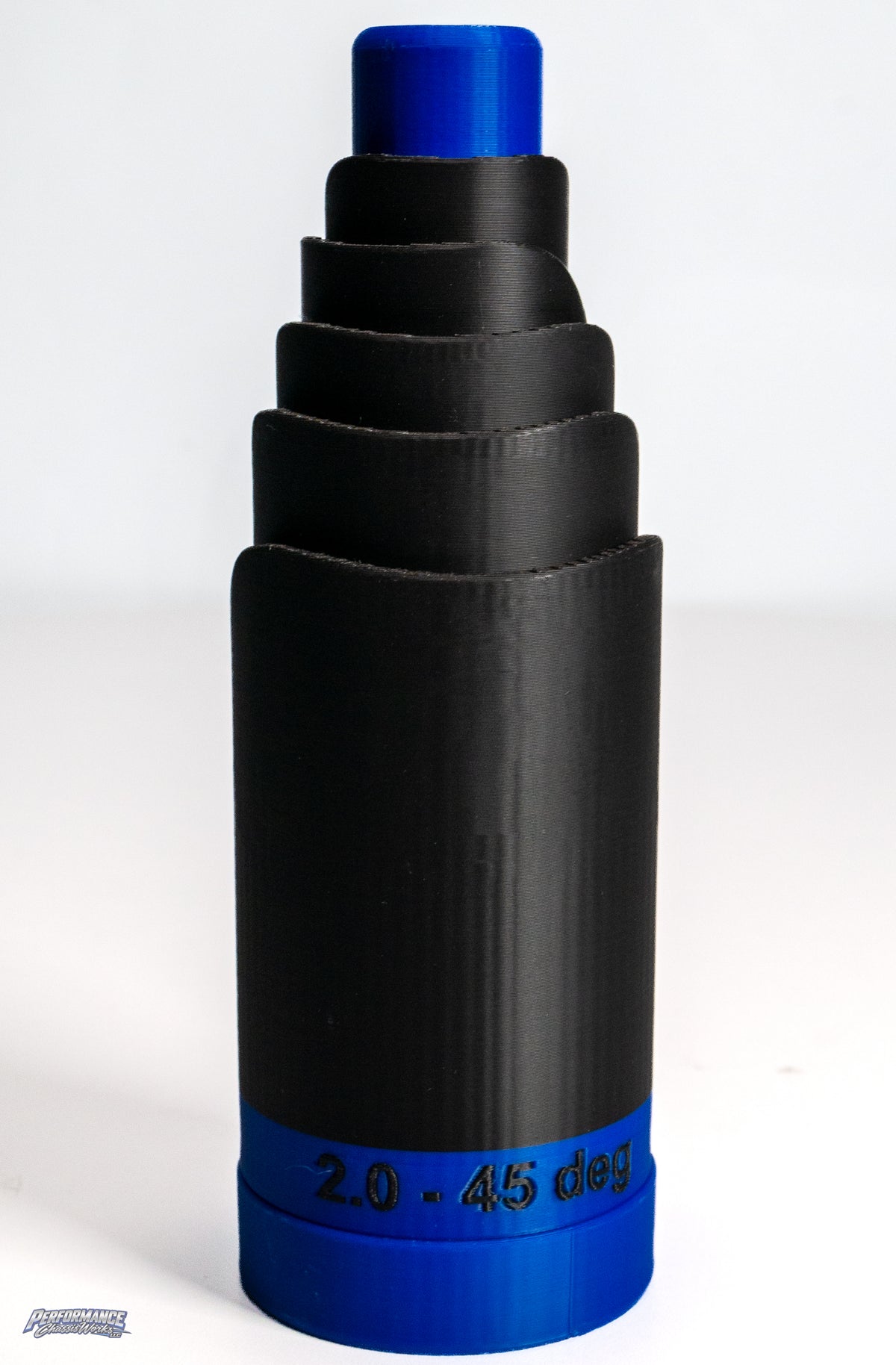

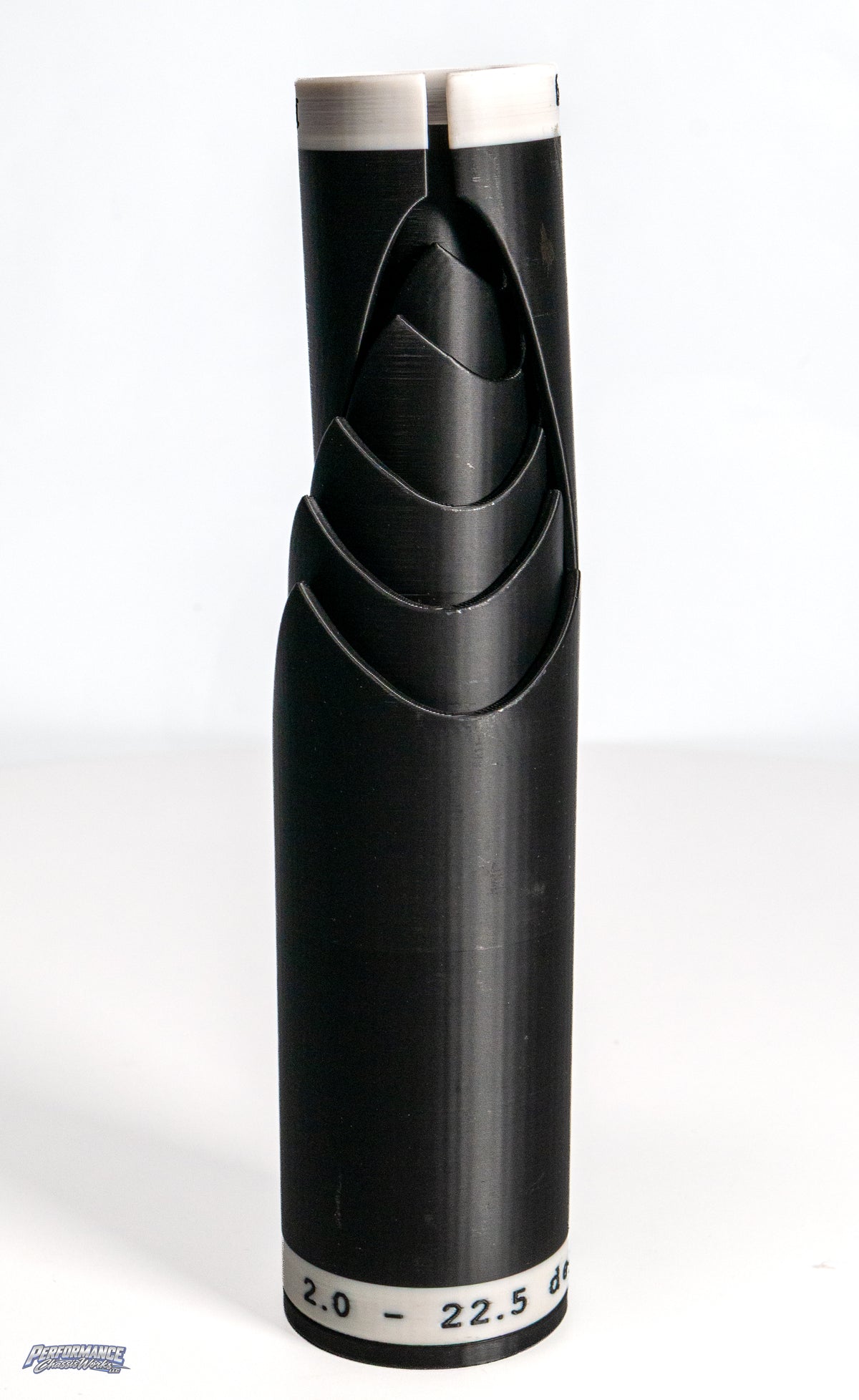

Multiple tube notching templates, covering several tubing outside diameters at each of these angles: 15°, 22.5°, 30°, 45°, 60°, and 0°.
Make your next fabrication project easier with PCW—quick layout, consistent profiles, and reusable templates ready for the next build.
